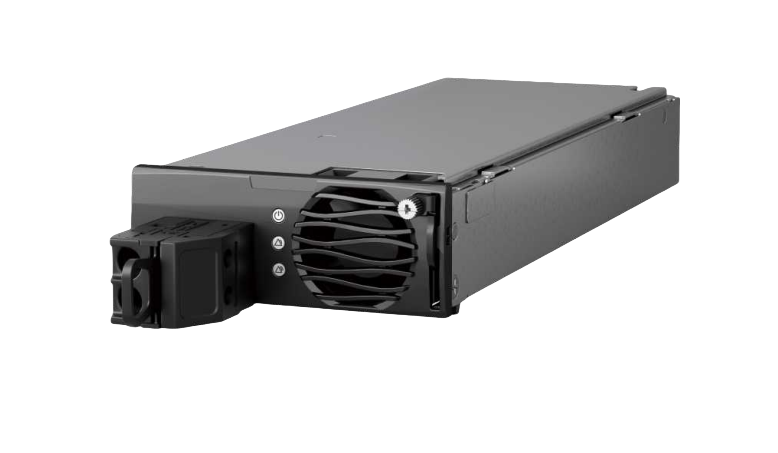

The IPS-483M1 is engineered for exceptional efficiency, delivering performance levels exceeding 97%. It is designed to operate across an extensive temperature range from -40°C to 75°C. To maintain optimal performance and extend service life, power derating is applied when the temperature exceeds 50°C. Additionally, the output power is automatically reduced if the input voltage drops below 200VDC, ensuring reliable functionality even under challenging conditions

• Input Voltage Range: 58 to 165Vdc, rated: 100Vdc
• MPPT Voltage Range: 58 to 120 Vdc
• Max. Input Current: 46 A
• MPPT Accuracy: ≥0.99@load ≥400W

• Output Voltage: -43.2 ~ -58 Vdc, rated: -54.5 Vdc
• Peak Efficiency: > 97%
• Maximum Capacity: 3000W
• Maximum Output Current: 52 A
• THD: ≤ 5% @50%~100% load

EMC

• EN55032RE Class A

Safety

• Designed according to IEC/EN62109-1: IEC62368-1 will be implemented in the future

Communication protocol

• CAN

LED

• Green – Normal
• Yellow – Alarm
• Red – Fault
