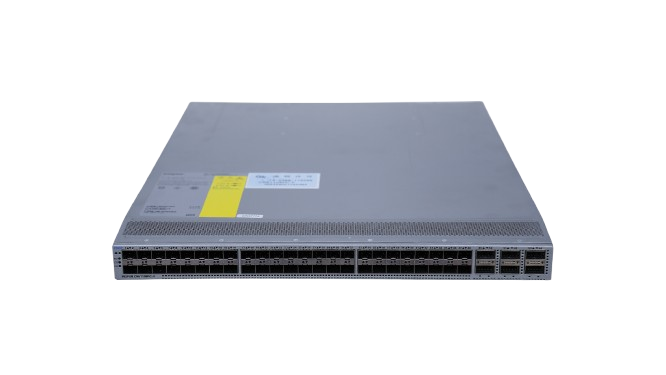

Inspur CN6100-V series switches can achieve full line-speed forwarding at Layer 2 and Layer 3, meeting the requirements of high density and high throughput of core layer/aggregation layer equipment.

With large MAC and strong routing functions, it can process data traffic of multiple business systems concurrently, realize flexible migration of multiple business systems, and improve business processing efficiency.

It has rich and powerful three-layer routing functions and supports RIP, OSPF, BGP and other features.

It has complete multicast protocols, supports IGMP v1/v2/v3, IGMP snooping, PIM, etc., meets the service carrying requirements of cloud center networks and enterprise campus scenarios, and supports more abundant business applications.

Inspur CN6100-V series switches have complete cloud-centric network features, supporting priority flow control (PFC), enhanced transmission selection (ETS), quantified congestion notification (QCN), and cloud-centric network TCP features, meeting users’ needs to build cloud-centric network lossless Ethernet, reducing user costs (TCO) and simplifying management.

It supports mainstream VxLAN functions in cloud center networks. By encapsulating Layer 2 messages in UDP tunnel messages, it provides a large Layer 2 network similar to VLAN, allowing users to achieve greater scalability and flexibility in network architecture, solving the problem of insufficient number of VLANs and difficulty in scalability in traditional cloud center networks.

It supports NVGRE, VXLAN, GENEVE and other protocols, and has an open API interface to meet the implementation and deployment of mainstream SDN technologies.

On the one hand, Inspur CN6100-V series switches can provide device-level reliability protection and adopt redundant backup design solutions for all key components: hot-swappable power supplies, fans, etc., all meet 1+1 redundancy, greatly improving the stability and reliability of the entire machine.

On the other hand, it can provide link-level reliability protection, support VRRP, BFD and other protocols, and has the industry’s advanced cross-device link aggregation technology. It has flexible networking and can achieve rapid convergence of multiple virtual ones on the control plane and large-traffic services, ensuring uninterrupted business systems.

Ultra-low latency, providing data packets of any size with a latency of less than 800 nanoseconds, meeting customers’ high-performance computing network requirements.

The power consumption of the whole machine is less than 200W, which is the lowest among the same level products in the industry. The adjustable speed fan can automatically adjust the fan speed according to the external ambient temperature. It can save energy, reduce the operating temperature of the components in the equipment, improve the reliability of the equipment, and thus greatly reduce the use and maintenance costs of the equipment.
