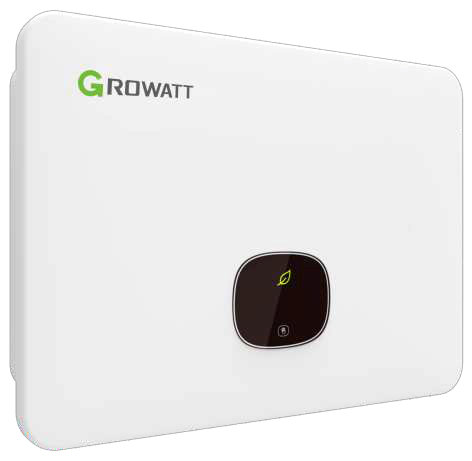

MID 11 - 30K TL3-XH

  • Battery ready, up to 30kw
  • DC/AC ratio up to 2
  • AFCI function ready
  • Type II SPD on DC and AC side
  • 24h self-consumption monitoring
BagianMID 11KTL3-XHMID 12KTL3-XHMID 13KTL3-XHMID 15KTL3-XHMID 17KTL3-XHMID 20KTL3-XHMID 25KTL3-XHMID 30KTL3-XH
Input Data (DC)
Max. Recommended PV Power (W)2200024000260003000034000400005000060000
Max. DC Voltage (V)11001100110011001100110011001100
Start Voltage (V)200200200200200200200200
Nominal Voltage (V)600600600600600600600600
MPPT Voltage Range (V)160-1000160-1000160-1000160-1000160-1000160-1000160-1000160-1000
No. of MPPT Trackers22222333
No. of PV Strings per MPPT Tracker22222333
Max. Input Current per MPPT Tracker (A)3232323232323232
Max. DC Short-Circuit Current (A)4040404040404040
Input Data (DC Battery)
Compatible BatteryAPX HV Battery System (5kWh-60kWh)
Operating Voltage Range (V)600-980600-980600-980600-980600-980600-980600-980600-980
Max. Operating Current (A)2525252525252525
Max. Discharge Power (W)15000/30000**15000/30000**15000/30000**15000/30000**15000/30000**15000/30000**15000/30000**15000/30000**
Output Data (AC)
AC Nominal Power (W)1100012000130001500017000200002500030000
Max. AC Apparent Power (VA)1210013200143001650018700220002750030000
Nominal AC Voltage (V)220/380V, 230/400V (340-440V)220/380V, 230/400V (340-440V)220/380V, 230/400V (340-440V)220/380V, 230/400V (340-440V)220/380V, 230/400V (340-440V)220/380V, 230/400V (340-440V)220/380V, 230/400V (340-440V)220/380V, 230/400V (340-440V)
Max. Output Current (A)18.32021.72528.333.341.645.5
Adjustable Power Factor0.8 leading – 0.8 lagging0.8 leading – 0.8 lagging0.8 leading – 0.8 lagging0.8 leading – 0.8 lagging0.8 leading – 0.8 lagging0.8 leading – 0.8 lagging0.8 leading – 0.8 lagging0.8 leading – 0.8 lagging
THD<3%<3%<3%<3%<3%<3%<3%<3%
AC Grid Connection Type3W+N+PE3W+N+PE3W+N+PE3W+N+PE3W+N+PE3W+N+PE3W+N+PE3W+N+PE
Efficiency
Max. Efficiency (%)98.798.798.798.798.798.798.798.8
European Efficiency (%)98.598.598.598.598.598.598.598.5
Protection Devices
DC Reverse Polarity ProtectionYesYesYesYesYesYesYesYes
DC SwitchYesYesYesYesYesYesYesYes
AC/DC Surge ProtectionType IIType IIType IIType IIType IIType IIType IIType II
Insulation Resistance MonitoringYesYesYesYesYesYesYesYes
Grid MonitoringYesYesYesYesYesYesYesYes
Anti-Islanding ProtectionYesYesYesYesYesYesYesYes
AFCI ProtectionOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptional
General Data
Dimensions (W/H/D) (mm)580/435/230580/435/230580/435/230580/435/230580/435/230580/435/230580/435/230580/435/230
Weight (kg)3131313131313131
Operating Temperature Range (°C)-25°C to +60°C-25°C to +60°C-25°C to +60°C-25°C to +60°C-25°C to +60°C-25°C to +60°C-25°C to +60°C-25°C to +60°C
Self-Consumption (W)<5W<5W<5W<5W<5W<5W<5W<5W
TopologyTransformerlessTransformerlessTransformerlessTransformerlessTransformerlessTransformerlessTransformerlessTransformerless
CoolingSmart Air CoolingSmart Air CoolingSmart Air CoolingSmart Air CoolingSmart Air CoolingSmart Air CoolingSmart Air CoolingSmart Air Cooling
Warranty (Years)1010101010101010
